LD600T / LD1000T


Price: Call for Pricing
Manufacturer: Marathon Equipment Inc.

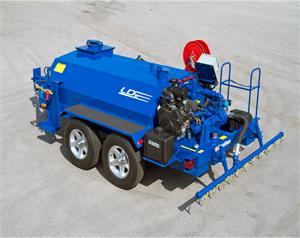

Marathon’s pumping distributors will save time on road maintenance, road construction, airport work, parking lots, or wherever hot tack or other liquids must be applied. Applications can be completed quickly and easily using the spray wand(s) or spray bar. LD’s have many features found only on larger, more expensive units. All LD models maximum operating temperature is 200°F.

 Heavy duty channel iron frame.
 Long lasting all welded construction.
 Industrial grade axle with leaf spring
suspension and electric brakes.
 Adjustable hitch with 3” pintle eye and safety
chains.
 Thick sheet metal panels exceed the
standard used in competitive products.
 Safety burner easily accessible for lighting
and service, quickly heats material in a
double pass tube-fired configuration.
 Large 18” manhole provides easy access to
material vat.
 10” diameter filler lid.
 Fully adjustable, heavy duty, external
pressure relief valve.
 Direct drive pumping system eliminates the
need for belts and clutches.
 Fully insulated material vat.
 Generous 20 gallon flushing tank for easy
clean out.
 Standard 40ft. high pressure material hose
with ¼ turn control valve on a 5ft spray wand.
 Conveniently located adjustable screw type
jack.
 Easy to read material thermometer.
 Exhaust stack with rain cover.
 100lb propane bottle holder comes complete
with hold down straps.
 All necessary stop, turn and marker lights.
 Increased corrosion resistance with epoxy
primer and standard blue paint finish.


Options
 Hand wand re-circulation plumbing reduces flushing
requirements.
 Additional spray wand with hose.
 6ft. or 8ft. spray bar (requires pump upgrade)
 80 gpm pump (replaces 60 gpm pump)
 Two 2ft. spray bar extensions with camlocks.
 Automatic temperature control.
 200,000 BTU hand held vapour propane torch with 15ft. hose.
 120 volt 1500 watt overnight heater (max. temperature 100°F
to 120°F)
 Electric breakaway switch with battery.
 Hydraulic surge brakes.
 Hydraulically driven pumping system, forward & reverse
 Diesel fired heating systems.
 Additional 100lb propane bottle holder with hold down
straps.
 10lb. fire extinguisher with bracket.
 Hose reel.
 12 gallon recovery tank.
 Cab controlled, air operated spray bar assembly with or
without compressor.
 Spare tire and rim
 Customer’s choice of standard paint colours.

Specifications LD600T LD1000T
Shipping Weight 3500lbs (1591kg) 5269lbs (2395kg)
Dimensions
Overall Length: 195” (495cm) 212” (538cm)
Overall Width: 92” (233cm) 92” (233cm)
Overall Height 58” (147cm) 70” (177cm)
Loading Height 51” (129cm) 61” (155cm)
Capacities 585 gal (2215L) 1000gal (3780L)
Engine 11hp Honda 11hp Honda
Pump 60 gpm 60 gpm
Burner (1) 410,000 BTU (1) 410,000 BTU
w/out-fire protection w/out-fire protection
Brakes – Drum Electric Electric
2” x 12” 2” x 12”
Suspension
Springs Leaf Leaf
Axles Tandem Tandem
Capacities 10,400lb (4717kg) 14,000lb (6364kg)
Tires (4) 235/85/R16 (4) 235/85/R16
MAXIMUM OPERATING TEMPERATURE 200°F
*Specifications are subject to change without notice.
