Price: Call for Pricing
Manufacturer: Marathon Equipment Inc.

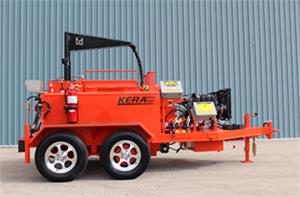

Rubberized Asphalt Melter Applicator with Electrically Heated Hose
The electrically heated hose system delivers heated material to the point of application while maintaining temperature even during intermittent periods of nonuse. Available diesel or propane fired in 145 gallon, 250 gallon and 400 gallon capacities. Designed for high production crack filling, these powered pump kettles feature an electrically heated hose delivery system. This innovative design eliminates hose clogs, the need for hose clean out and offers superior reliability. Quality built and designed for performance and reliability.

Electrically Heated Hose System
 Sealant delivered by a hydraulically driven 2” helical gear
 Electrically heated hose provides quick start up times.
 Material is dispensed on demand with a twist grip
controlled applicator wand with a no drip applicator tip.
 Sealant pressure and flow is controlled by a variable
bypass control system.

Power & Heating
 Power is provided by a rugged, low maintenance, 26hp
Kohler diesel engine with high temperature and low oil
pressure safeties.
 A 12 volt diesel burner provides quick heating times.
 A standard 110 volt, 1500 watt electric overnight heater
maintains heat to reduce daily start-up time.
 A reliable, easy to use Automatic Temperature Controller is
conveniently mounted curbside to provide safe, accurate
temperature control with built in out-fire protection.

 Precise agitation control is achieved with a variable speed,
hydraulically driven, reversible agitator.
 The reciprocating agitator is designed with safety in mind
and will not jam with solid material.
 The floating agitator gently scrapes the walls of the vat to
reduce coking on the vat walls and to minimize material
heat up time.

 All welded construction using heavy steel panels that
exceed the thickness used in competitive equipment.
 The oil jacketed material vat heats up quickly due to its
large surface area.
 The lowest profile kettle in the industry provides safe, easy
loading of material.
 The low center of gravity provides towing stability with high
visibility for maximum operator safety.
 The kettle is well insulated with safety and fuel economy in
 Reverse loading, lockable, anti-splash material door(s)
provide safe loading of material.
 Increased corrosion resistance with epoxy primer and
standard orange paint finish.

 Heavy duty channel iron frame.
 Long lasting all welded frame.
 Heavy duty, industrial grade wide tandem axles with leaf
springs and electric brakes.
 Adjustable hitch with 3” pintle eye and safety chains.
 Conveniently located heavy duty, top wind jack.
 All necessary stop, turn and marker lights.

 Propane fired heating systems.
 80 CFM compressor.
 200,000 BTU hand held torch with 15ft. hose & propane bottle
 10lb. fire extinguisher with bracket.
 Electric breakaway switch with battery.
 Hydraulic surge brakes.
 Strobe light.
 Spare tire & rim.
 Trigger controls for material pump operation.
 Customer’s choice of standard paint colour.

Shipping Weight 3550lbs (1610 kg)
Overall Length 163” (414cm)
Overall Width 80” (203cm)
Overall Height 86” (218cm)
Loading Height 50” (127cm)
Material Vat 150 gal (567 L)
Heat Transfer Oil 30 gal (113 L)
Diesel Fuel Tank 32 gal (121 L)
Hydraulic Oil Tank 27 gal (102 L)
Engine 26hp liquid cooled, electric
start, Kohler diesel
Burner One 320,000 BTU diesel
Axles Tandem, drop center
Capacity 7000lbs (3182kg)
Tires – size (4) 205/75/R15
*All units are also produced with propane heating systems.
