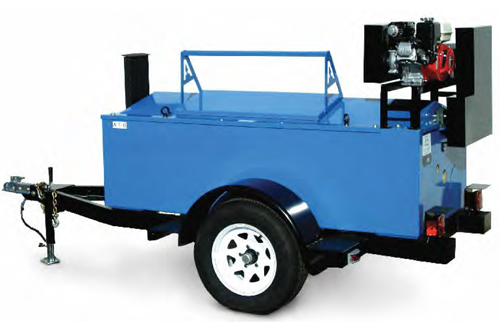

A-110 Melter

Price: Call for Pricing
Manufacturer: A&A Melters

The A-110 is very versatile and can be transported easily in the back of a pick-up; can be hoisted directly to the roof. Easily accommodated in commercial elevators, the A-110 fits through standard 34″ doorways and can be equipped with optional casters for easy movement. Stainless steel fire tube comes standard.

Also optional: Quick mount/dismount trailer. Available with gas, electric or optional Diesel drive. Material ready in 35 minutes.


Heat Transfer Oil None Required
Fire Tube 4″ sch 80 Stainless Steel Pipe
Capacity  100 US Gallons
Agitator Honda 5.5 H.P. Air-Cooled Engine, 110 V Electric or Optional Diesel Engine
Overall Dimensions (Melter Only) L-88″ W-33 5/8″ H-45″  1,500 lbs
Burner Adjustable Liquid Propane 1 X 500,000 BTU or Optional Beckett Diesel Burners
Temperature Controls Optional
Inner Shell 3/16″ Rolled Steel
Outer Shell 1/8″ Rolled Steel
Insulated jacket 1/2″ Super high temp + 2″ High Temp. Fiberglass
Suspension 4″ Drop Axle 3500 lb. Axle and Springs
Optional Trailer (w/ Melter mounted) L-132″ x W-58″ x H-66″  1,775 lbs
Brakes Optional
Tow Hitch As ordered c/w safety chain
Shipping Weight (Melter only) 1500 lbs
Shipping Weight (Trailer only) 275 lbs
Pump Optional 1 1/2″ Viking
Horizontal Wand Pumping System Optional
Tires 2 X 6.00 X 14″
Trailer Chassis 4″ Steel Channel

Heated Material Output:

  • Efficiency: 78.9%
  • Material Capacity: 100 US Gallons | 100 gal/.58 hr x 78.9% = 136 gal/hr
  • Heat up time: 35 min’s (0.58 hr) | 514.9 L/.58 hr x 78.9% = 700 L/hr
