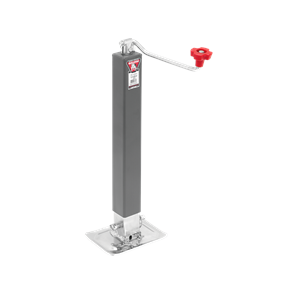

Bulldog 8K Topwind Dropleg Jack 15in Lift 190704


Price: $155.00
Item Number: 11400
Manufacturer Part No: 190704
BULLDOG's 8,000 lbs. support capacity square jack serves the agricultural, industrial, construction, horse/livestock trailer, and utility/cargo trailer markets. The compact design of these jacks makes them ideal for tight-fitting applications where 3" and 4" square tube jacks are too big!
  • Use the painted outer tube as the final finish or primer
  • Zinc-plated inner tube and drop leg
  • 4.7" Outer / inner tube overlap - results in optimal side load performance
  • 5/8" screw stem - provides insurance against screw stem twisting off
  • Patented screw nut stop - prevents screw and/or nut damage when jack is fully extended
  • Topwind models - bushing in top cap, eagle claw grip
  • Sidewind models - 1/4" cross pin connects gear train to screw stem - guards against shearing jack pin
  • Sidewind models - 1:1.33 gear ratio
  • Travel - 15 in.
  • Retracted - 22.66 in.
  • Extended - 51.41 in.
